CM5022R800R-10

CM5022R800R-10

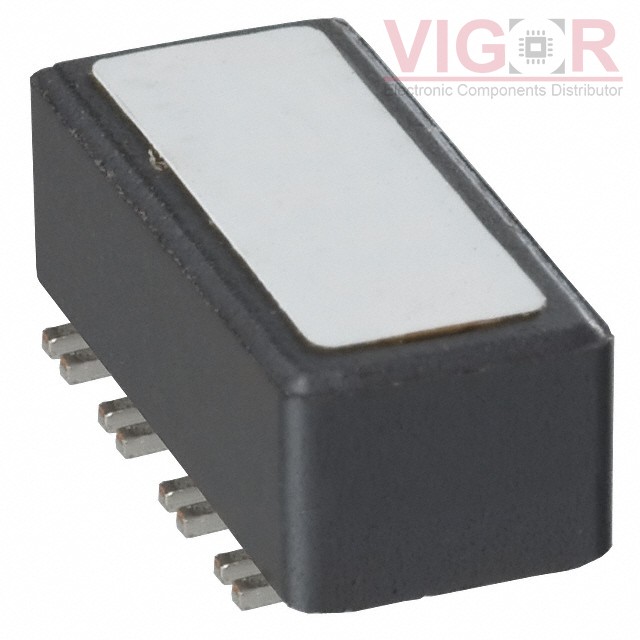

Image is for reference,
please contact us to get the real picture

Part No :

CM5022R800R-10

Manufacturer
Laird - Performance Materials
Description
CMC 5A 8LN 80 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
CM5022R800R-10 PDF
Availability
0 pieces
Unit Price
$1.91271

Current price of CM5022R800R-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM5022R800R-10 Specifications
Type Description
Series:CM
Package:Tape & Reel (TR)
Part Status:Active
Filter Type:Power Line
Number of Lines:8
Impedance @ Frequency:80 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):5A
DC Resistance (DCR) (Max):20mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.495" L x 0.265" W (12.57mm x 6.73mm)
Height (Max):0.197" (5.00mm)
Package / Case:Vertical, 16 Flat Lead
