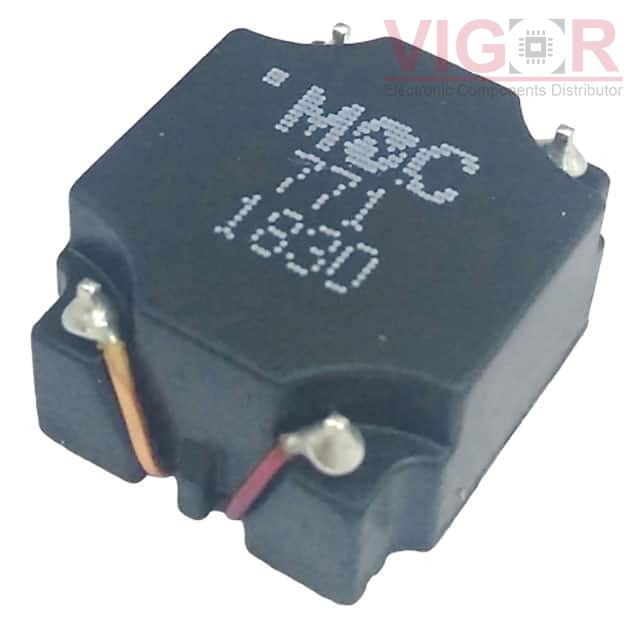

CM1385SG771N

Image is for reference,
please contact us to get the real picture

Part No :: CM1385SG771N

Manufacturer: Mentech Technology USA Inc.

Description: CMC 770 UH 3.6A 2LN SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: CM1385SG771N PDF

Availability: 250 pieces

Unit Price: ~~$2.18400~~

Current price of CM1385SG771N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM1385SG771N Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	770 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	3.6A
DC Resistance (DCR) (Max):	25mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.768" L x 0.669" W (19.50mm x 17.00mm)
Height (Max):	0.394" (10.00mm)
Package / Case:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

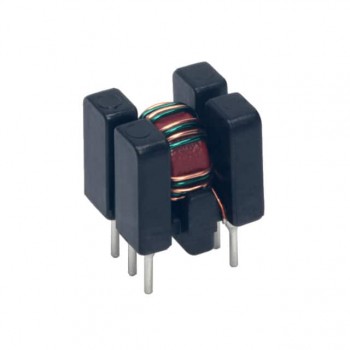

SH-212

CMC TROID, NI-ZN, 1.5UH, TH UL94

HOT

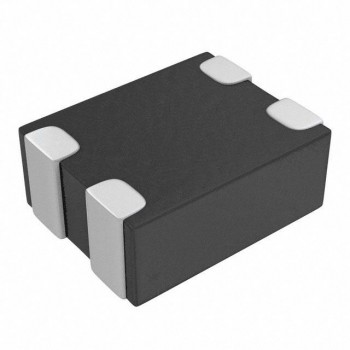

EXC-34CG900U

CMC 100MA 2LN 90 OHM SMD

HOT

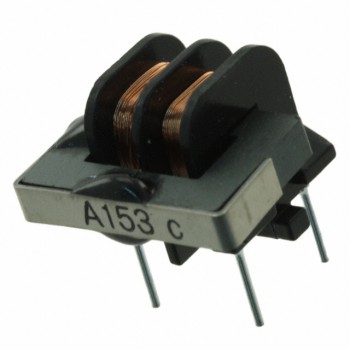

TLF9UAH153W0R2K1
