PLT5BPH3013R7SNL

PLT5BPH3013R7SNL

Image is for reference,
please contact us to get the real picture

Part No :

PLT5BPH3013R7SNL

Manufacturer
TOKO / Murata
Description
CMC 2.2A 2LN 300OHM SMD AEC-Q200
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
PLT5BPH3013R7SNL PDF
Availability
0 pieces
Unit Price
$1.70000

Current price of PLT5BPH3013R7SNL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PLT5BPH3013R7SNL Specifications
Type Description
Series:PLT5BPH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:300 Ohms @ 10 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2.2A
DC Resistance (DCR) (Max):11mOhm (Typ)
Voltage Rating - DC:80V
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 150°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height (Max):0.197" (5.00mm)
Package / Case:Vertical, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82724B2182N021

B82724B2182N021

CMC 33MH 1.8A 2LN TH
HOT CMF23V-273141-B

CMF23V-273141-B

CMC 27MH 1.4A 2LN TH

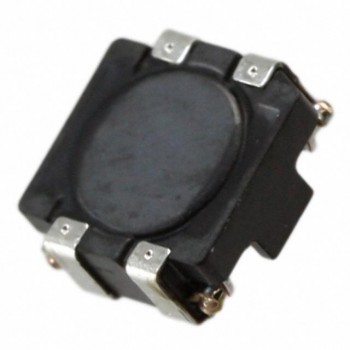

HOT ACM4520-142-2P-T000
