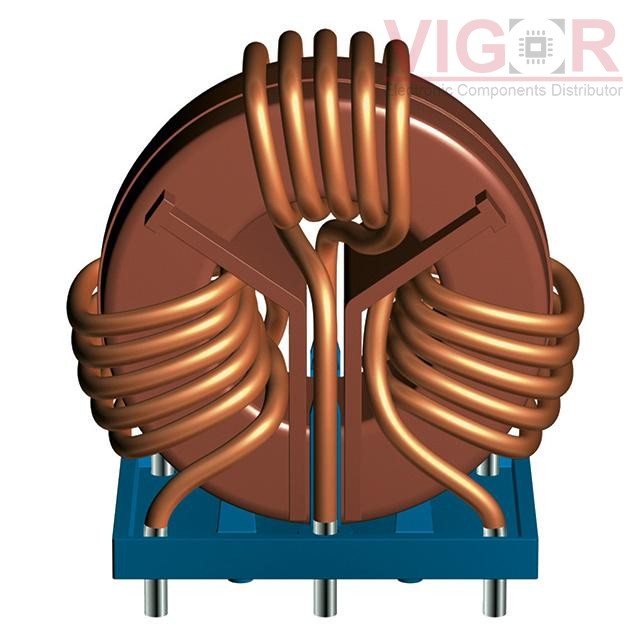

B82747E6253A040

B82747E6253A040

Image is for reference,
please contact us to get the real picture

Part No :

B82747E6253A040

Manufacturer
TDK EPCOS
Description
COMMON MODE CHOKE 1MH 25A 3LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
B82747E6253A040 PDF
Availability
96 pieces
Unit Price
$12.83000

Current price of B82747E6253A040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82747E6253A040 Specifications
Type Description
Series:B82747
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:3
Impedance @ Frequency:-
Inductance @ Frequency:1 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):25A
DC Resistance (DCR) (Max):2.8mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:600/350V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:UR
Features:-
Mounting Type:Through Hole
Size / Dimension:2.559" L x 1.457" W (65.00mm x 37.00mm)
Height (Max):2.598" (66.00mm)
Package / Case:Vertical, 6 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ACM70V-701-2PL-TL00

ACM70V-701-2PL-TL00

CMC 4A 2LN 700 OHM SMD AEC-Q200

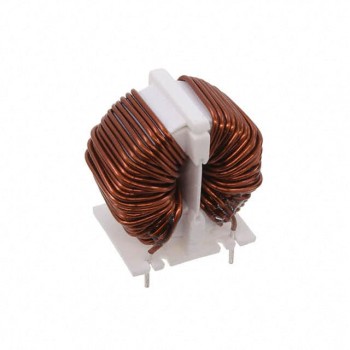

HOT SC-06-10J-B

SC-06-10J-B

CMC 1MH,6A, 0.03OHM

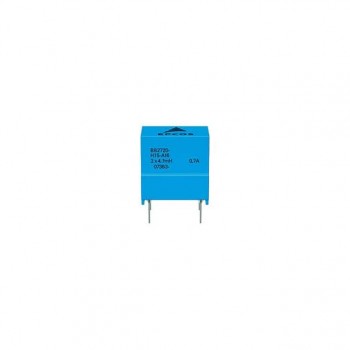

HOT B82720H0015A016
