B82720S2152N040

B82720S2152N040

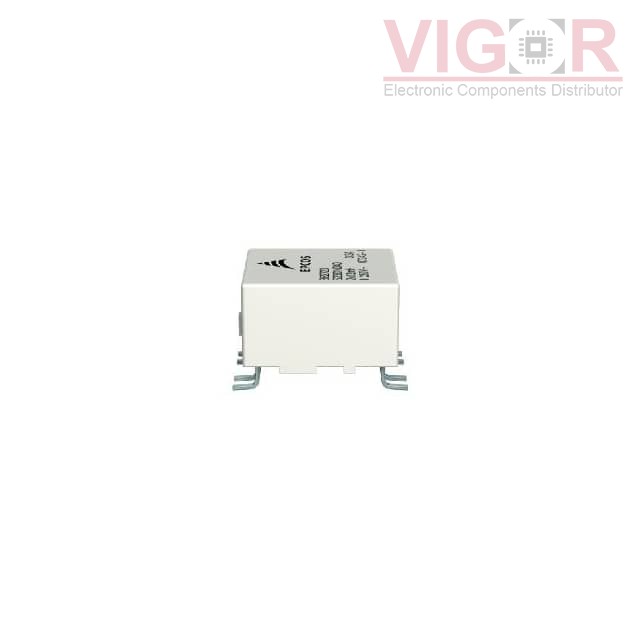

Image is for reference,
please contact us to get the real picture

Part No :

B82720S2152N040

Manufacturer
TDK EPCOS
Description
CMC 1.6MH 1.5A 4LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
B82720S2152N040 PDF
Availability
0 pieces
Unit Price
$1.52628

Current price of B82720S2152N040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82720S2152N040 Specifications
Type Description
Series:B82720
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:4
Impedance @ Frequency:-
Inductance @ Frequency:1.6 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.5A
DC Resistance (DCR) (Max):110mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.587" L x 0.524" W (14.90mm x 13.30mm)
Height (Max):0.421" (10.70mm)
Package / Case:Vertical, 8 Gull Wing
