ACM4520V-142-2P-T00

ACM4520V-142-2P-T00

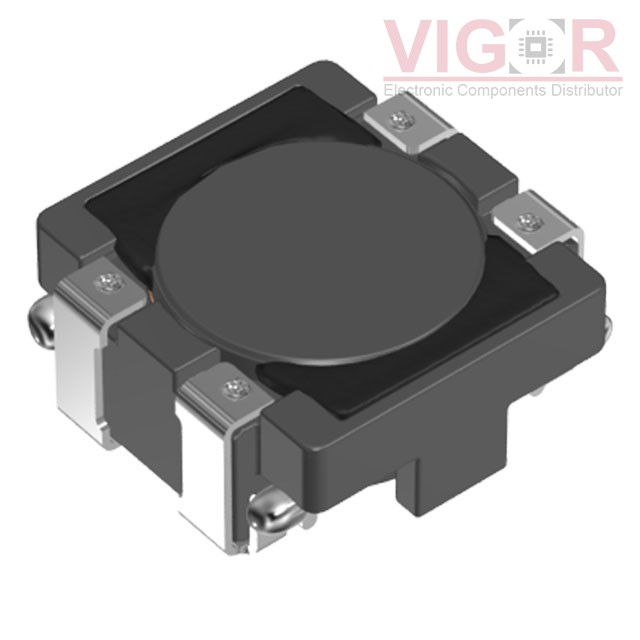

Image is for reference,
please contact us to get the real picture

Part No :

ACM4520V-142-2P-T00

Manufacturer
TDK Corporation
Description
CMC 1A 2LN 1.4 KOHM SMD AEC-Q200
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
ACM4520V-142-2P-T00 PDF
Availability
90472 pieces
Unit Price
$1.40000

Current price of ACM4520V-142-2P-T00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACM4520V-142-2P-T00 Specifications
Type Description
Series:ACM-V
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:1.4 kOhms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1A
DC Resistance (DCR) (Max):80mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Max):0.079" (2.00mm)
Package / Case:Horizontal, 4 PC Pad
