PFC2225BNP-502

PFC2225BNP-502

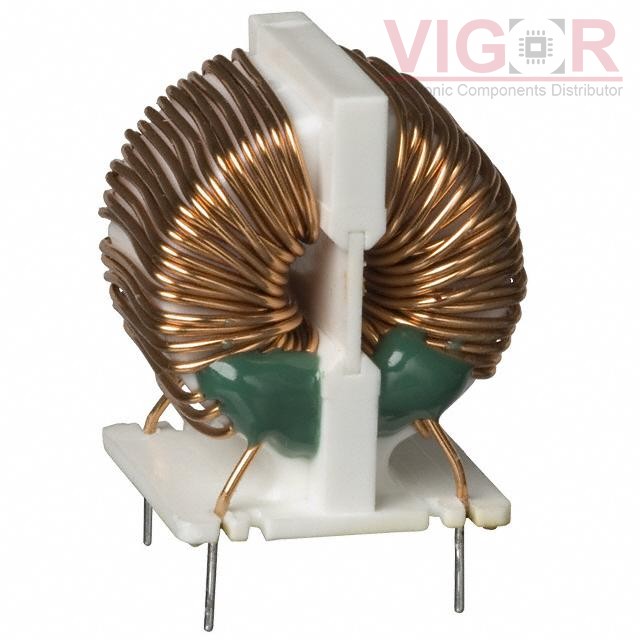

Image is for reference,
please contact us to get the real picture

Part No :

PFC2225BNP-502

Manufacturer
Sumida Corporation
Description
COMMON MODE CHOKE 5MH 3A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
PFC2225BNP-502 PDF
Availability
0 pieces
Unit Price
$1.95510

Current price of PFC2225BNP-502 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PFC2225BNP-502 Specifications
Type Description
Series:PFC
Package:Bulk
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:5 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):3A
DC Resistance (DCR) (Max):81mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max):1.063" (27.00mm)
Package / Case:Vertical, No Base, 4 PC Pin
