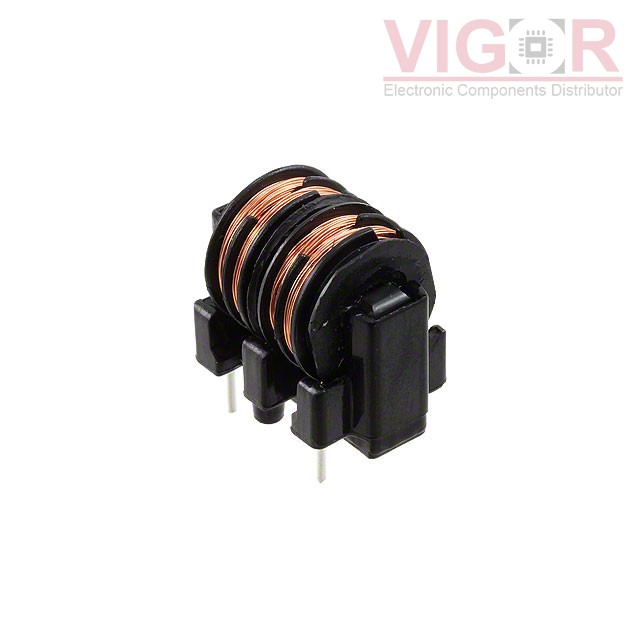

SS11VL-R08125

Image is for reference,
please contact us to get the real picture

Part No :: SS11VL-R08125

Manufacturer: KEMET

Description: CMC 12.5MH 800MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: SS11VL-R08125 PDF

Availability: 27 pieces

Unit Price: ~~$1.90000~~

Current price of SS11VL-R08125 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SS11VL-R08125 Specifications

Type	Description
Series:	SS
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	12.5 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	740mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.866" L x 0.571" W (22.00mm x 14.50mm)
Height (Max):	0.807" (20.50mm)
Package / Case:	Vertical, 4 PC Pin
