PHBC20-1R7A0097V

PHBC20-1R7A0097V

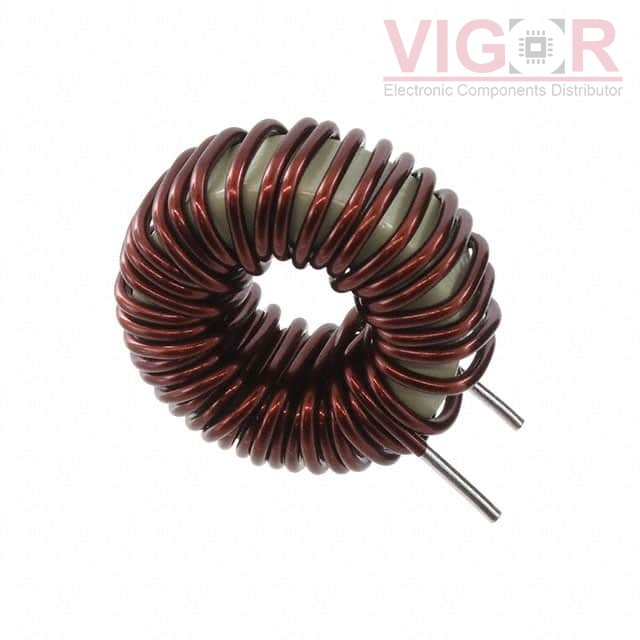

Image is for reference,
please contact us to get the real picture

Part No :

PHBC20-1R7A0097V

Manufacturer
KEMET
Description
NMC 90.3UH 12A 0.0160OHM TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
PHBC20-1R7A0097V PDF
Availability
0 pieces
Unit Price
$12.23200

Current price of PHBC20-1R7A0097V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PHBC20-1R7A0097V Specifications
Type Description
Series:PHBC
Package:Bulk
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:97 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):12A
DC Resistance (DCR) (Max):16mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:-
Height (Max):-
Package / Case:Vertical, No Base, 2 PC Pin
