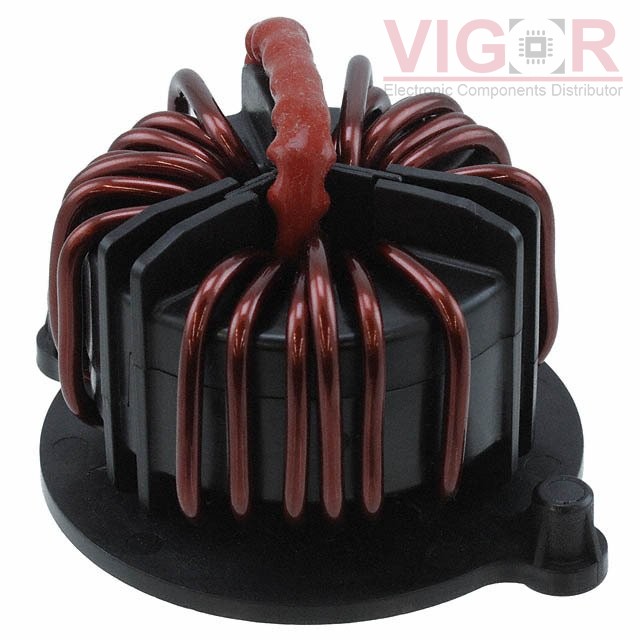

RB6132-25-0M5

Image is for reference,
please contact us to get the real picture

Part No :: RB6132-25-0M5

Manufacturer: Schaffner EMC, Inc.

Description: CMC 470UH 25A 3LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: RB6132-25-0M5 PDF

Availability: 0 pieces

Unit Price: ~~$14.62000~~

Current price of RB6132-25-0M5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RB6132-25-0M5 Specifications

Type	Description
Series:	RB
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	470 µH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	25A
DC Resistance (DCR) (Max):	2.4mOhm (Typ)
Voltage Rating - DC:	1000V (1kV)
Voltage Rating - AC:	600V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.315" L x 2.276" W (58.80mm x 57.80mm)
Height (Max):	1.890" (48.00mm)
Package / Case:	Horizontal, 4 PC Pin
