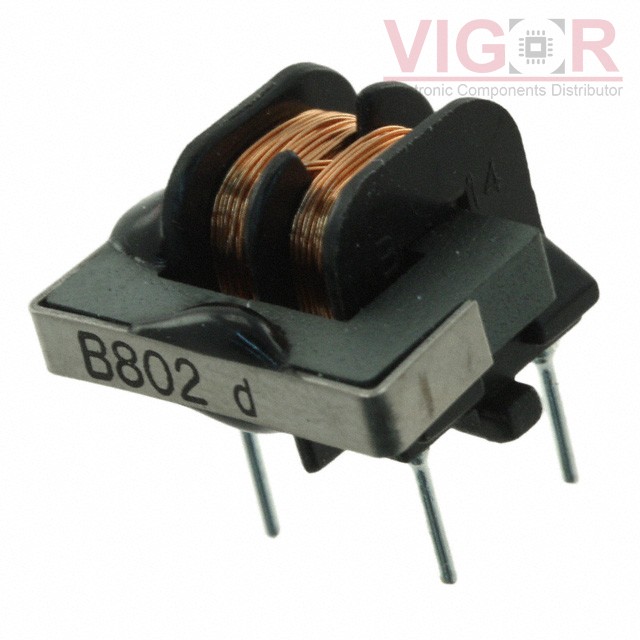

TLF9UBH802WK1

Image is for reference,
please contact us to get the real picture

Part No :: TLF9UBH802WK1

Manufacturer: TAIYO YUDEN

Description: CMC 300MA 2LN 40 KOHM TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: TLF9UBH802WK1 PDF

Availability: 1 pieces

Unit Price: ~~$0.85000~~

Current price of TLF9UBH802WK1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLF9UBH802WK1 Specifications

Type	Description
Series:	TLF9
Package:	Bulk
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	40 kOhms @ 700 kHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	3Ohm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.669" L x 0.591" W (17.00mm x 15.00mm)
Height (Max):	0.472" (12.00mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

RN116-1.3-02-6M8

CMC 6.8MH 1.3A 2LN TH

HOT

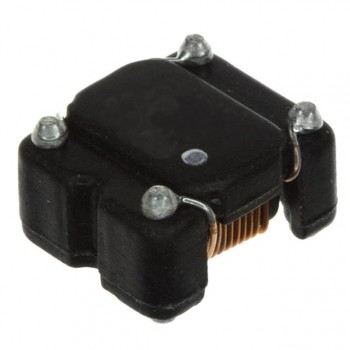

744272471

CMC 470UH 1.6A 2LN 1.75 KOHM SMD

HOT

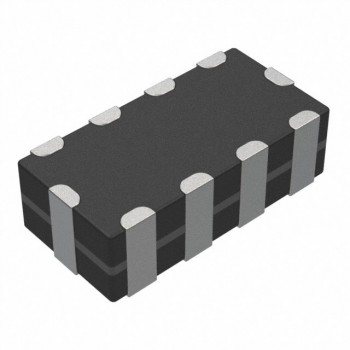

LCFE160804A750TG
