CMT-8120-B

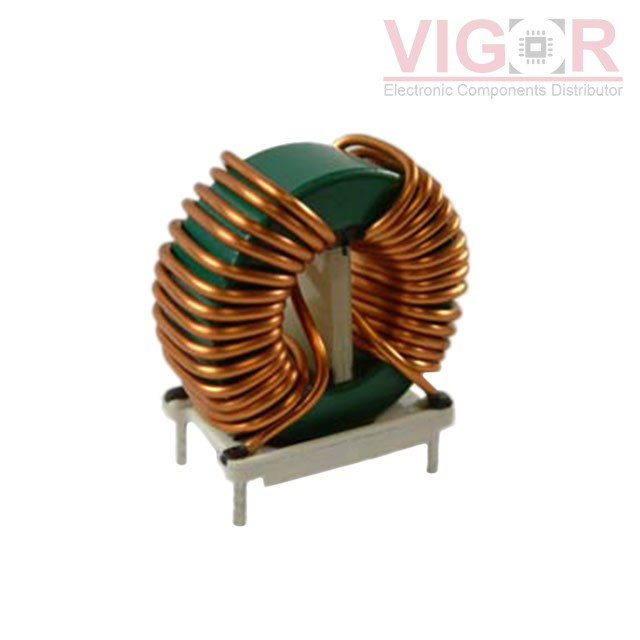

Image is for reference,
please contact us to get the real picture

Part No :: CMT-8120-B

Manufacturer: Triad Magnetics

Description: CMC 2.4MH 17A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: CMT-8120-B PDF

Availability: 270 pieces

Unit Price: ~~$5.28000~~

Current price of CMT-8120-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMT-8120-B Specifications

Type	Description
Series:	CMT
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.4 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	17A
DC Resistance (DCR) (Max):	8mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	1500V (1.5kV)
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	1.700" L x 0.900" W (43.18mm x 22.86mm)
Height (Max):	1.650" (41.91mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
