744833011180

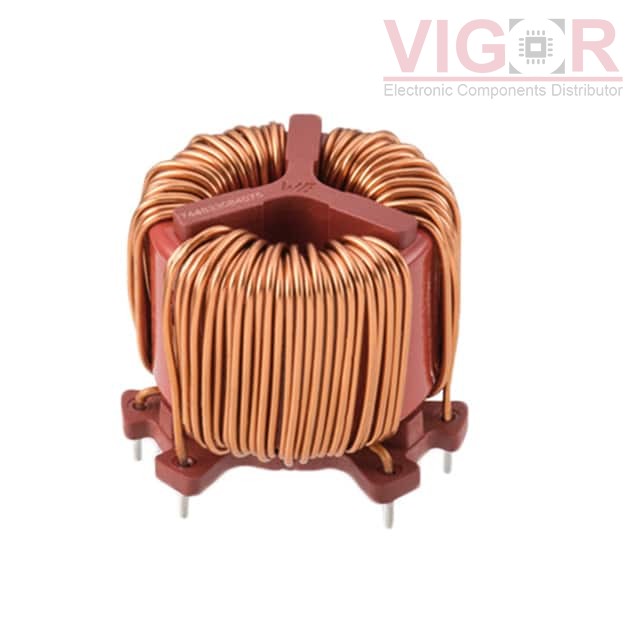

Image is for reference,
please contact us to get the real picture

Part No :: 744833011180

Manufacturer: Würth Elektronik Midcom

Description: WE-TPB THREE-PHASE COMMON MODE P

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: 744833011180 PDF

Availability: 0 pieces

Unit Price: ~~$19.46000~~

Current price of 744833011180 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744833011180 Specifications

Type	Description
Series:	WE-TPB
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	1.1 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	18A
DC Resistance (DCR) (Max):	7mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	500V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.850" Dia (47.00mm)
Height (Max):	1.535" (39.00mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
