CME2425-5-B

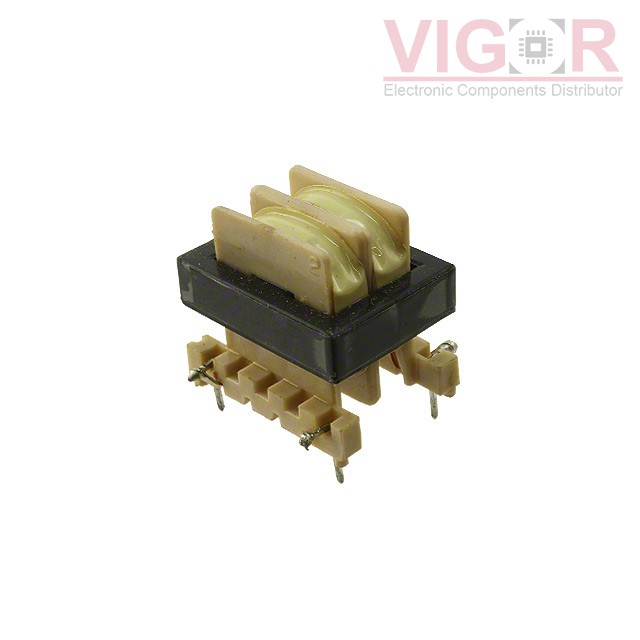

Image is for reference,
please contact us to get the real picture

Part No :: CME2425-5-B

Manufacturer: Triad Magnetics

Description: CMC 9.8MH 1A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: CME2425-5-B PDF

Availability: 0 pieces

Unit Price: ~~$5.04900~~

Current price of CME2425-5-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CME2425-5-B Specifications

Type	Description
Series:	CME
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	9.8 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	319mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 80°C
Ratings:	-
Approval Agency:	CSA, IEC, UL, VDE
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	1.050" L x 1.050" W (26.67mm x 26.67mm)
Height (Max):	1.075" (27.31mm)
Package / Case:	Vertical, 4 PC Pin
