744220

744220

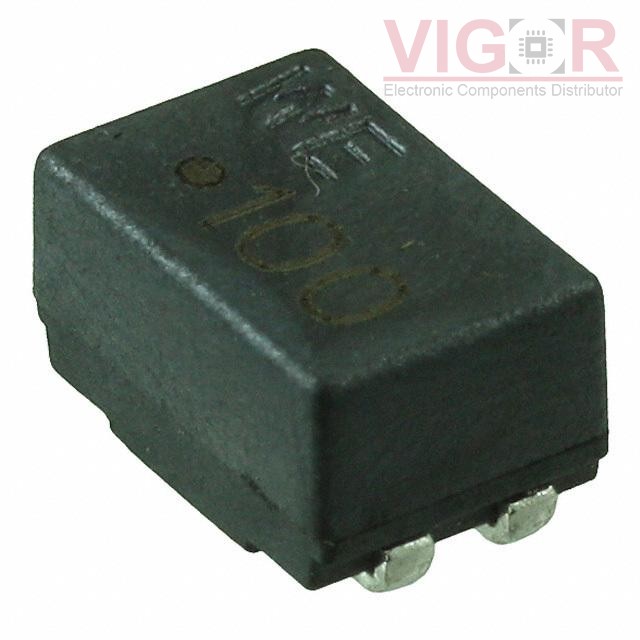

Image is for reference,
please contact us to get the real picture

Part No :

744220

Manufacturer
Würth Elektronik Midcom
Description
CMC 4.7MH 500MA 2LN 20 KOHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
744220 PDF
Availability
425 pieces
Unit Price
$2.46000

Current price of 744220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744220 Specifications
Type Description
Series:WE-SL2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:20 kOhms @ 1 MHz
Inductance @ Frequency:4.7 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):500mA
DC Resistance (DCR) (Max):750mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max):0.205" (5.20mm)
Package / Case:Horizontal, 4 PC Pad
