DCM232315H-203NHF

DCM232315H-203NHF

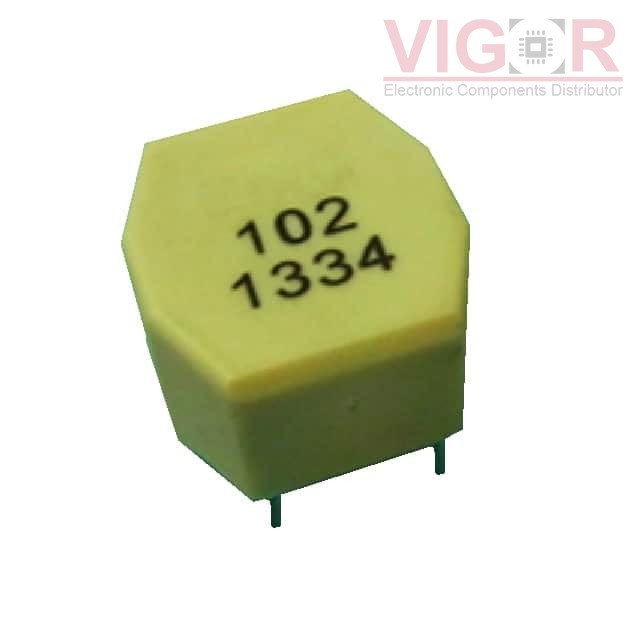

Image is for reference,
please contact us to get the real picture

Part No :

DCM232315H-203NHF

Manufacturer
ITG Electronics, Inc.
Description
CMC 20MH 700MA 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
DCM232315H-203NHF PDF
Availability
30 pieces
Unit Price
$5.05000

Current price of DCM232315H-203NHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DCM232315H-203NHF Specifications
Type Description
Series:DCM232315H
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:20 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):700mA
DC Resistance (DCR) (Max):520mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 130°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.906" L x 0.906" W (23.00mm x 23.00mm)
Height (Max):0.610" (15.50mm)
Package / Case:Horizontal, 4 PC Pin
