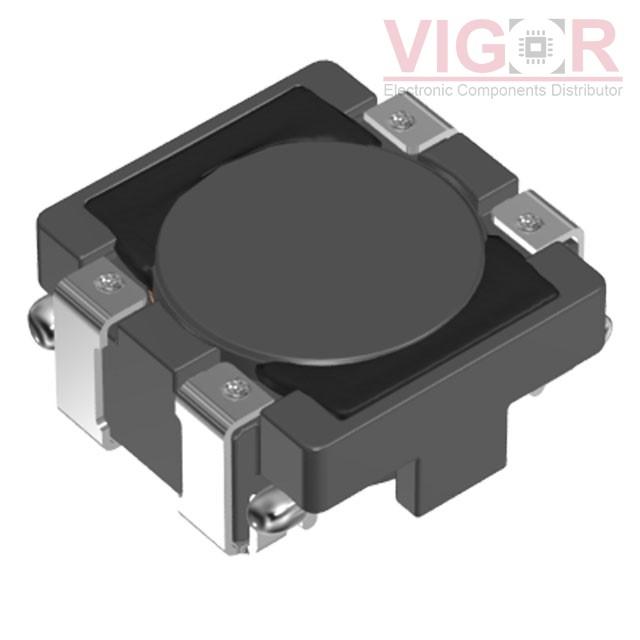

ACM4520V-231-2P-TL00

ACM4520V-231-2P-TL00

Image is for reference,
please contact us to get the real picture

Part No :

ACM4520V-231-2P-TL00

Manufacturer
TDK Corporation
Description
CMC 1.5A 2LN 230OHM SMD AEC-Q200
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
ACM4520V-231-2P-TL00 PDF
Availability
0 pieces
Unit Price
$0.65100

Current price of ACM4520V-231-2P-TL00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACM4520V-231-2P-TL00 Specifications
Type Description
Series:ACM-V
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:230 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.5A
DC Resistance (DCR) (Max):50mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Max):0.079" (2.00mm)
Package / Case:Horizontal, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 7442335900

7442335900

CMC 500MA 2LN 90 OHM SMD
HOT SSRH7HS-M08134

SSRH7HS-M08134

CMC 13.4MH 800MA 2LN TH

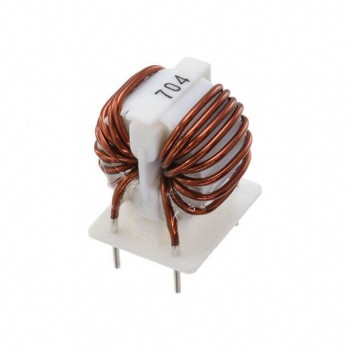

HOT SC-07-50J
