CM6296R-654

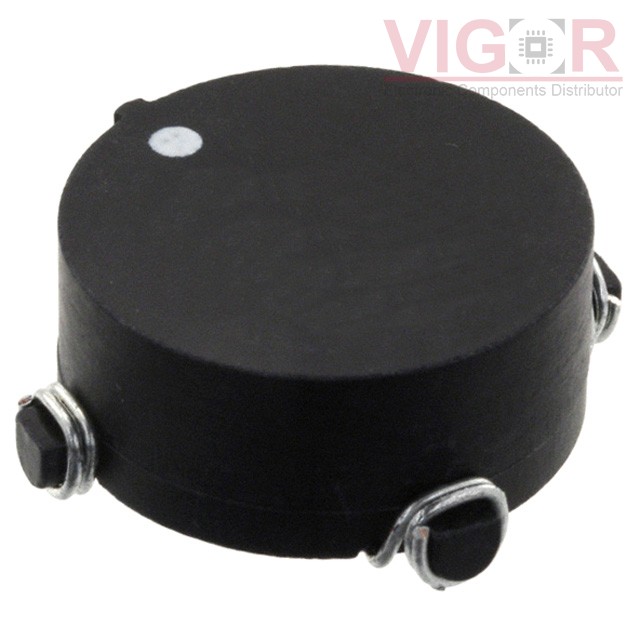

Image is for reference,
please contact us to get the real picture

Part No :: CM6296R-654

Manufacturer: API Delevan

Description: CMC 650UH 5.5A 2LN SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: CM6296R-654 PDF

Availability: 542 pieces

Unit Price: ~~$11.79000~~

Current price of CM6296R-654 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM6296R-654 Specifications

Type	Description
Series:	CM6296R
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	650 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5.5A
DC Resistance (DCR) (Max):	30mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max):	0.423" (10.74mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
