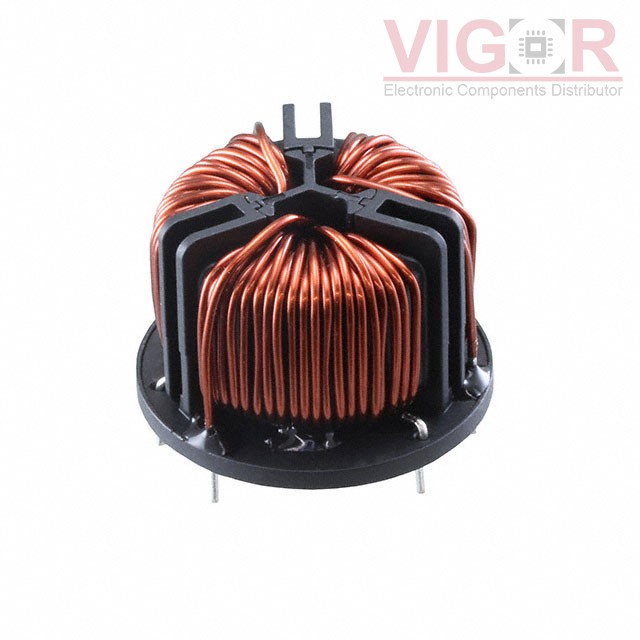

RT8132-20-2M5

Image is for reference,
please contact us to get the real picture

Part No :

RT8132-20-2M5

Manufacturer
Schaffner EMC, Inc.
Description
CMC 2.5MH 20A 3LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
RT8132-20-2M5 PDF
Availability
39 pieces
Unit Price
$12.35000

Current price of RT8132-20-2M5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:RT
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:3
Impedance @ Frequency:-
Inductance @ Frequency:2.5 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):20A
DC Resistance (DCR) (Max):7mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:600V
Operating Temperature:-40°C ~ 100°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:2.244" Dia (57.00mm)
Height (Max):1.457" (37.00mm)
Package / Case:Horizontal, 6 PC Pin
