PFC2225BNP-702

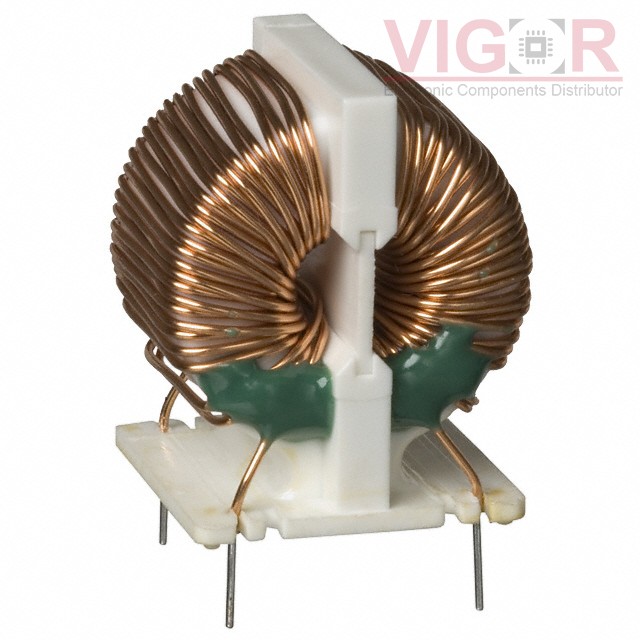

Image is for reference,
please contact us to get the real picture

Part No :: PFC2225BNP-702

Manufacturer: Sumida Corporation

Description: CMC 7MH 2.5A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: PFC2225BNP-702 PDF

Availability: 0 pieces

Unit Price: ~~$1.95510~~

Current price of PFC2225BNP-702 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PFC2225BNP-702 Specifications

Type	Description
Series:	PFC
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	7 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.5A
DC Resistance (DCR) (Max):	135mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max):	1.063" (27.00mm)
Package / Case:	Vertical, No Base, 4 PC Pin

Please confirm the specifications of the products when ordering.
