744284102

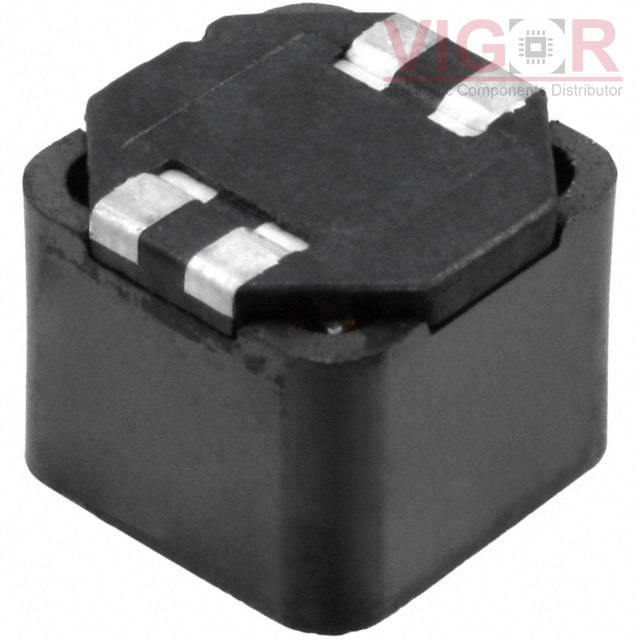

Image is for reference,
please contact us to get the real picture

Part No :: 744284102

Manufacturer: Würth Elektronik Midcom

Description: CMC 1MH 300MA 2LN 160 KOHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: 744284102 PDF

Availability: 250 pieces

Unit Price: ~~$3.52000~~

Current price of 744284102 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744284102 Specifications

Type	Description
Series:	WE-SCC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power, Signal Line
Number of Lines:	2
Impedance @ Frequency:	160 kOhms @ 1 MHz
Inductance @ Frequency:	1 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	2.5Ohm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max):	0.413" (10.50mm)
Package / Case:	Horizontal, 4 PC Pad
