B82747S4203A020

B82747S4203A020

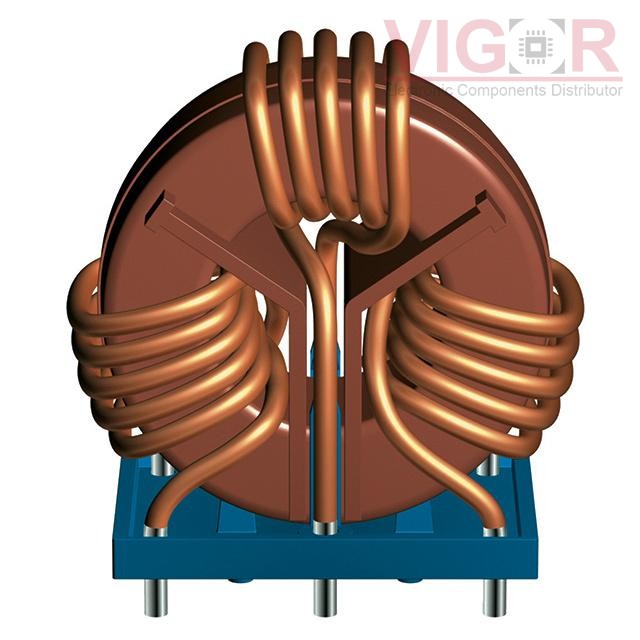

Image is for reference,
please contact us to get the real picture

Part No :

B82747S4203A020

Manufacturer
TDK EPCOS
Description
CMC 1.3MH 20A 3LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
B82747S4203A020 PDF
Availability
0 pieces
Unit Price
$12.45000

Current price of B82747S4203A020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82747S4203A020 Specifications
Type Description
Series:B82747
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:3
Impedance @ Frequency:-
Inductance @ Frequency:1.3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):20A
DC Resistance (DCR) (Max):5.2mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:440/250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:2.323" Dia x 1.102" W (59.00mm x 28.00mm)
Height (Max):2.362" (60.00mm)
Package / Case:Vertical, 6 PC Pin
