7514-RC

7514-RC

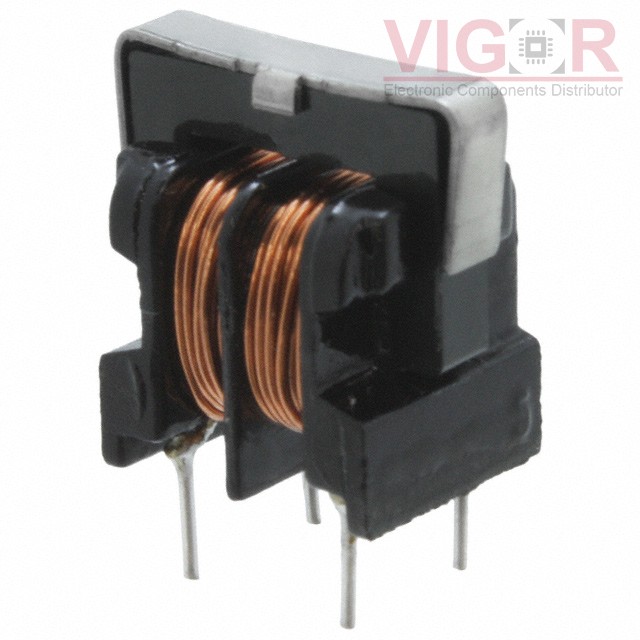

Image is for reference,
please contact us to get the real picture

Part No :

7514-RC

Manufacturer
J.W. Miller / Bourns
Description
COMMON MODE CHOKE 20MH 1A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
7514-RC PDF
Availability
600 pieces
Unit Price
$2.82000

Current price of 7514-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7514-RC Specifications
Type Description
Series:7500
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:20 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1A
DC Resistance (DCR) (Max):490mOhm
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-55°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max):1.083" (27.50mm)
Package / Case:Vertical, 4 PC Pin
