CMT-8103

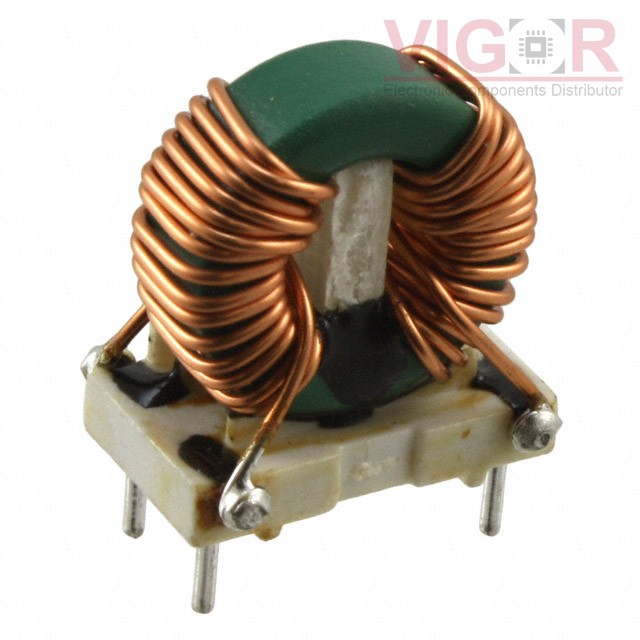

Image is for reference,
please contact us to get the real picture

Part No :: CMT-8103

Manufacturer: Triad Magnetics

Description: CMC 1MH 4.8A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: CMT-8103 PDF

Availability: 2539 pieces

Unit Price: ~~$3.40198~~

Current price of CMT-8103 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMT-8103 Specifications

Type	Description
Series:	CMT
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4.8A
DC Resistance (DCR) (Max):	22mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	1500V (1.5kV)
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	CSA, IEC, UL, VDE
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	0.760" L x 0.615" W (19.30mm x 15.62mm)
Height (Max):	0.900" (22.86mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
