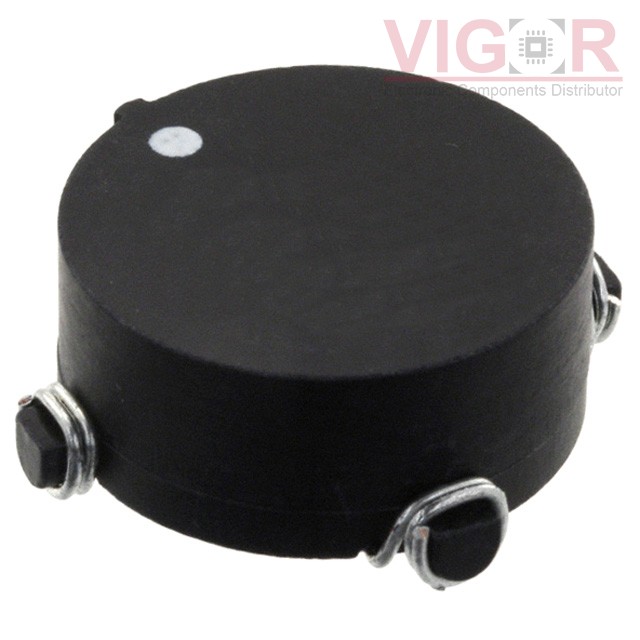

CM6296R-255

CM6296R-255

Image is for reference,
please contact us to get the real picture

Part No :

CM6296R-255

Manufacturer
API Delevan
Description
CMC 2.5MH 2.2A 2LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
CM6296R-255 PDF
Availability
0 pieces
Unit Price
$8.97363

Current price of CM6296R-255 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM6296R-255 Specifications
Type Description
Series:CM6296R
Package:Bulk
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:2.5 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2.2A
DC Resistance (DCR) (Max):162mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max):0.423" (10.74mm)
Package / Case:Horizontal, 4 PC Pad
