HHBC24N-2R3A0104V

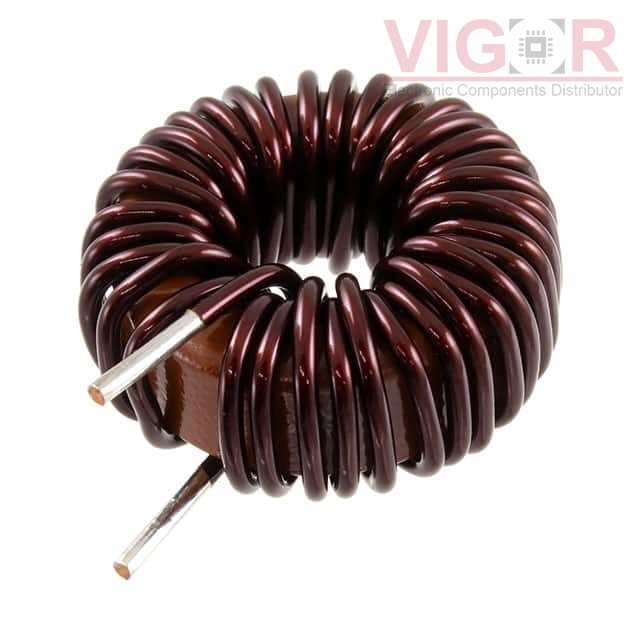

Image is for reference,
please contact us to get the real picture

Part No :: HHBC24N-2R3A0104V

Manufacturer: KEMET

Description: NMC 85.7UH 20A 0.0104OHM TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: HHBC24N-2R3A0104V PDF

Availability: 22 pieces

Unit Price: ~~$24.15000~~

Current price of HHBC24N-2R3A0104V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HHBC24N-2R3A0104V Specifications

Type	Description
Series:	*
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	104 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	20A
DC Resistance (DCR) (Max):	-
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	-
Height (Max):	1.949" (49.50mm)
Package / Case:	Vertical, No Base, 2 PC Pin
