ELF-23F005A

ELF-23F005A

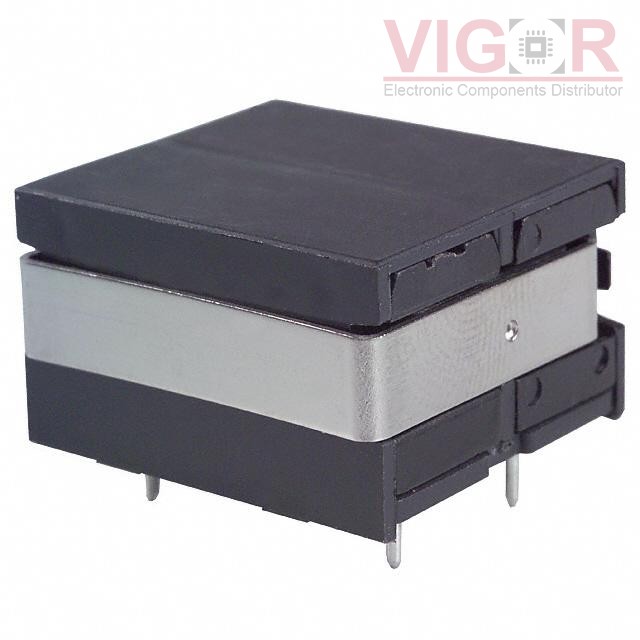

Image is for reference,
please contact us to get the real picture

Part No :

ELF-23F005A

Manufacturer
Panasonic
Description
COMMON MODE CHOKE 500MA 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
ELF-23F005A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ELF-23F005A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELF-23F005A Specifications
Type Description
Series:F
Package:Bulk
Part Status:Obsolete
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):500mA
DC Resistance (DCR) (Max):1.219Ohm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.945" L x 0.906" W (24.00mm x 23.00mm)
Height (Max):0.551" (14.00mm)
Package / Case:Vertical, 4 PC Pin
