ELF-18D215

ELF-18D215

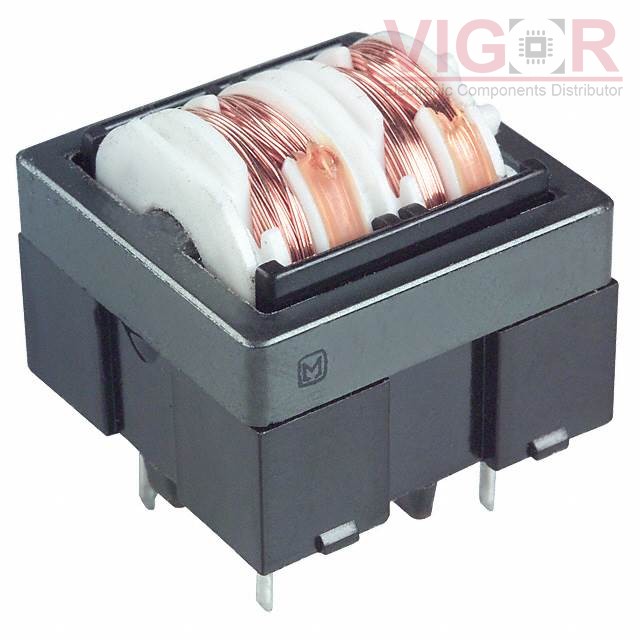

Image is for reference,
please contact us to get the real picture

Part No :

ELF-18D215

Manufacturer
Panasonic
Description
COMMON MODE CHOKE 15MH 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
ELF-18D215 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ELF-18D215 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELF-18D215 Specifications
Type Description
Series:H
Package:Bulk
Part Status:Obsolete
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:15 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):-
DC Resistance (DCR) (Max):1.091Ohm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-20°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.787" L x 0.827" W (20.00mm x 21.00mm)
Height (Max):0.787" (20.00mm)
Package / Case:Vertical, 4 PC Pin
