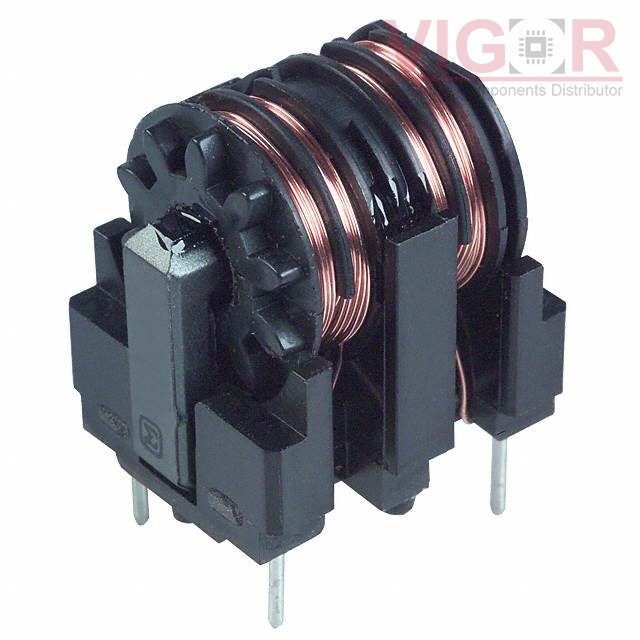

ELF-16M070A

Image is for reference,
please contact us to get the real picture

Part No :: ELF-16M070A

Manufacturer: Panasonic

Description: COMMON MODE CHOKE 700MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: ELF-16M070A PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELF-16M070A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELF-16M070A Specifications

Type	Description
Series:	M
Package:	Bulk
Part Status:	Obsolete
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	700mA
DC Resistance (DCR) (Max):	550mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.591" L x 0.709" W (15.00mm x 18.00mm)
Height (Max):	0.807" (20.50mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
