ELF-18D435F

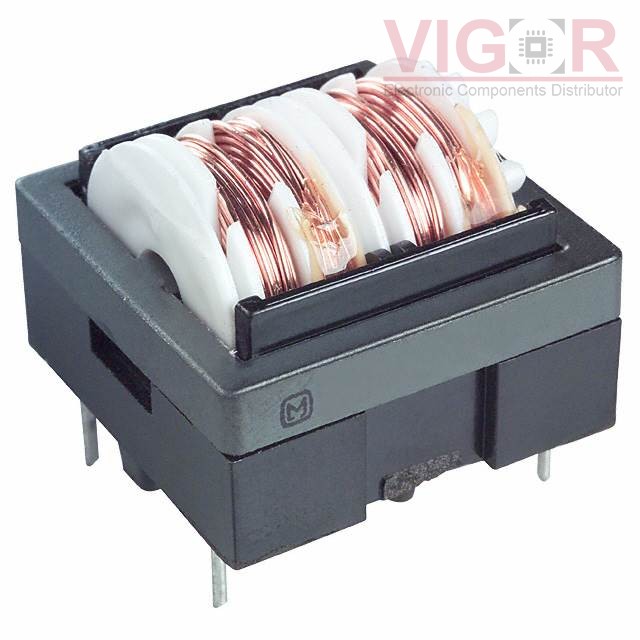

Image is for reference,
please contact us to get the real picture

Part No :: ELF-18D435F

Manufacturer: Panasonic

Description: CMC 2.2MH 2.2A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: ELF-18D435F PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELF-18D435F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELF-18D435F Specifications

Type	Description
Series:	H
Package:	Bulk
Part Status:	Obsolete
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.2 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.2A
DC Resistance (DCR) (Max):	84mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-20°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.945" L x 0.984" W (24.00mm x 25.00mm)
Height (Max):	0.807" (20.50mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
