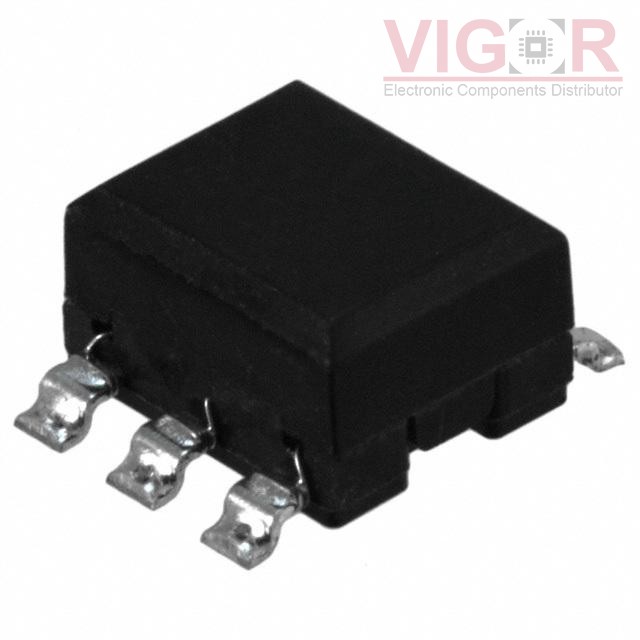

CM04RC02T

Image is for reference,
please contact us to get the real picture

Part No :: CM04RC02T

Manufacturer: TAIYO YUDEN

Description: CMC 500MA 3LN 1 KOHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: CM04RC02T PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CM04RC02T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM04RC02T Specifications

Type	Description
Series:	CM04
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Power, Signal Line
Number of Lines:	3
Impedance @ Frequency:	1 kOhms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	180mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.291" L x 0.354" W (7.40mm x 9.00mm)
Height (Max):	0.181" (4.60mm)
Package / Case:	6-SMD, Gull Wing

Please confirm the specifications of the products when ordering.
