PE-0805CCMC670STS

PE-0805CCMC670STS

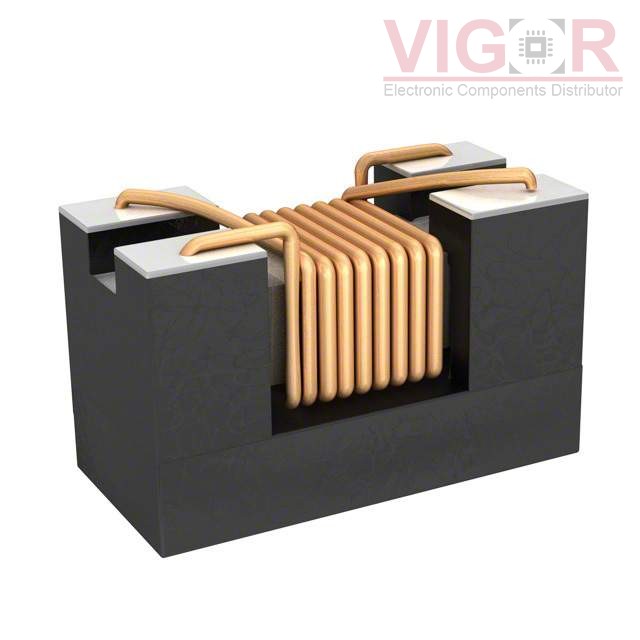

Image is for reference,
please contact us to get the real picture

Part No :

PE-0805CCMC670STS

Manufacturer
PulseLarsen Antenna
Description
CMC 400MA 2LN 67 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
PE-0805CCMC670STS PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PE-0805CCMC670STS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PE-0805CCMC670STS Specifications
Type Description
Series:ChipChoke™ CCMC
Package:Tape & Reel (TR)
Part Status:Obsolete
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:67 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):400mA
DC Resistance (DCR) (Max):250mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max):0.051" (1.30mm)
Package / Case:Horizontal, 4 PC Pad
