B82799C113N1

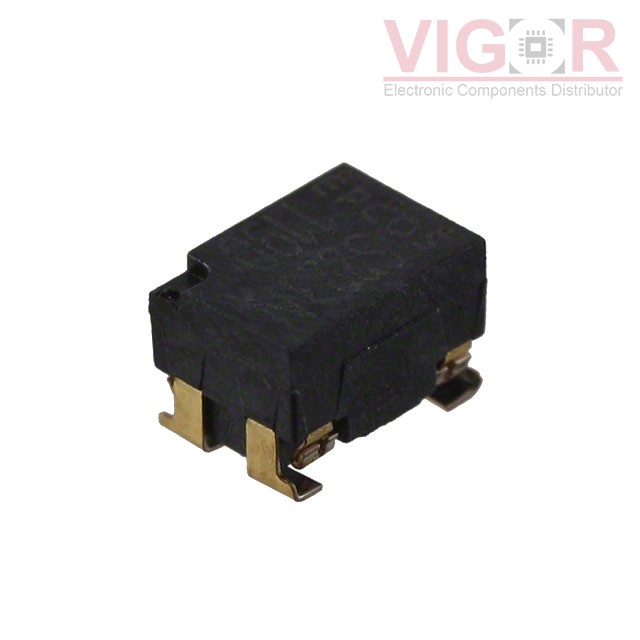

Image is for reference,
please contact us to get the real picture

Part No :: B82799C113N1

Manufacturer: TDK EPCOS

Description: CMC 11UH 300MA 2LN SMD AEC-Q200

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 16 - Aug 20 2025

DataSheet: B82799C113N1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of B82799C113N1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82799C113N1 Specifications

Type	Description
Series:	B82799
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	11 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	120mOhm (Typ)
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-55°C ~ 150°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.126" (3.20mm)
Package / Case:	Horizontal, 4 L-Lead

Please confirm the specifications of the products when ordering.
