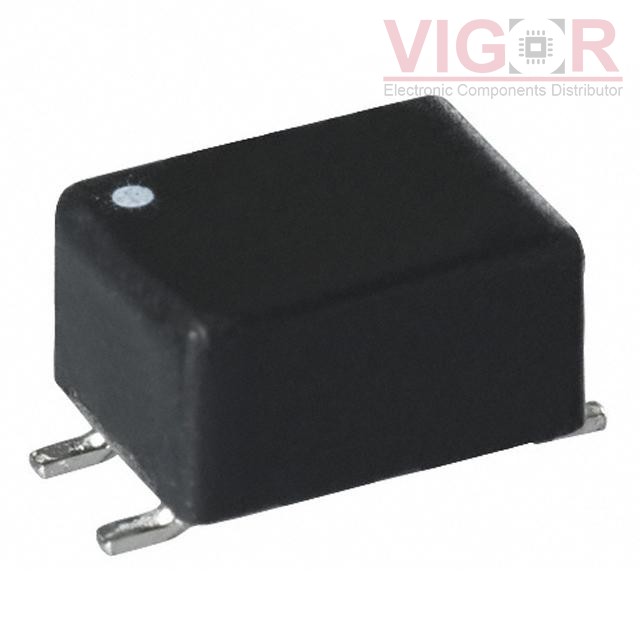

CC2824E113R-00

Image is for reference,
please contact us to get the real picture

Part No :

CC2824E113R-00

Manufacturer
Laird - Performance Materials
Description
CMC 11UH 800MA 2LN 800 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
CC2824E113R-00 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CC2824E113R-00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:CC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:800 Ohms @ 200 MHz
Inductance @ Frequency:11 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):800mA
DC Resistance (DCR) (Max):156mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:42V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.295" L x 0.217" W (7.50mm x 5.50mm)
Height (Max):0.150" (3.80mm)
Package / Case:Horizontal, 4 Flat Lead
