PM3700-50

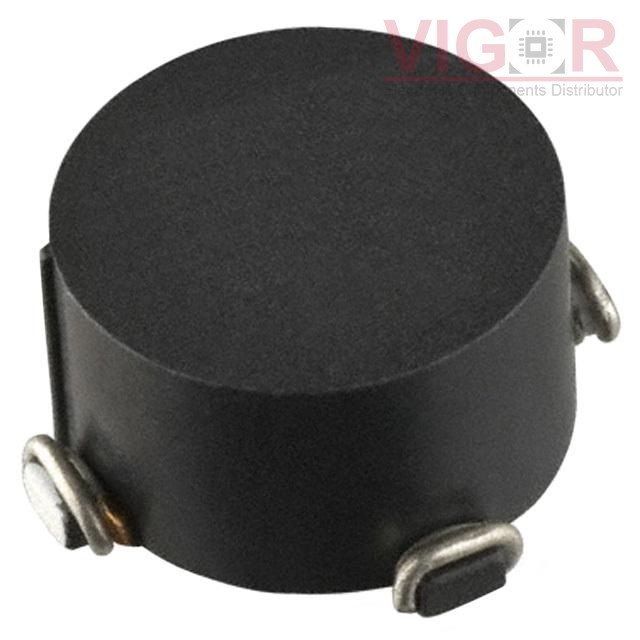

Image is for reference,
please contact us to get the real picture

Part No :: PM3700-50

Manufacturer: J.W. Miller / Bourns

Description: CMC 2MH 3.5A 2LN SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 26 - Aug 30 2025

DataSheet: PM3700-50 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PM3700-50 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM3700-50 Specifications

Type	Description
Series:	PM3700
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	3.5A
DC Resistance (DCR) (Max):	30mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Max):	0.450" (11.43mm)
Package / Case:	Horizontal, 4 PC Pad
