SDQ25-R47-R

SDQ25-R47-R

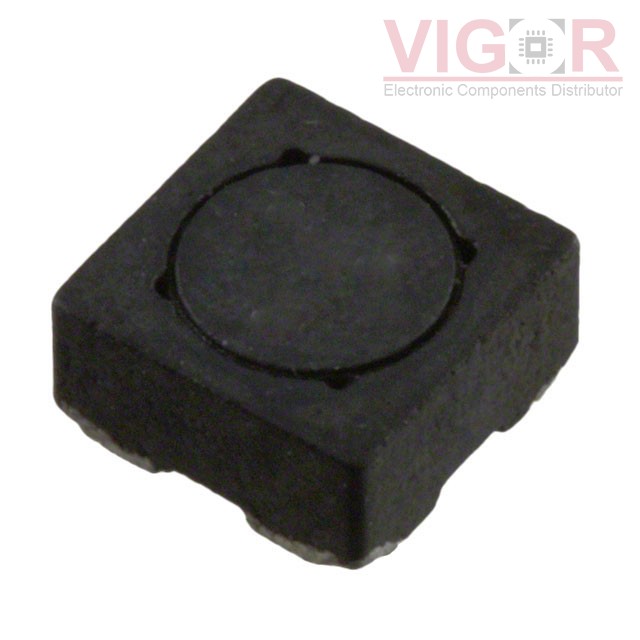

Image is for reference,
please contact us to get the real picture

Part No :

SDQ25-R47-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 392NH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
SDQ25-R47-R PDF
Availability
0 pieces
Unit Price
$1.52250

Current price of SDQ25-R47-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ25-R47-R Specifications
Type Description
Series:SDQ
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:392 nH
Inductance - Connected In Series:1.57 µH
Tolerance:±30%
Current Rating - Parallel:3.71 A
Current Rating - Series:1.86 A
Current Saturation - Parallel:6.43 A
Current Saturation - Series:3.21 A
DC Resistance (DCR) - Parallel:18.1mOhm
DC Resistance (DCR) - Series:72.5mOhm
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:0.098" (2.50mm)
