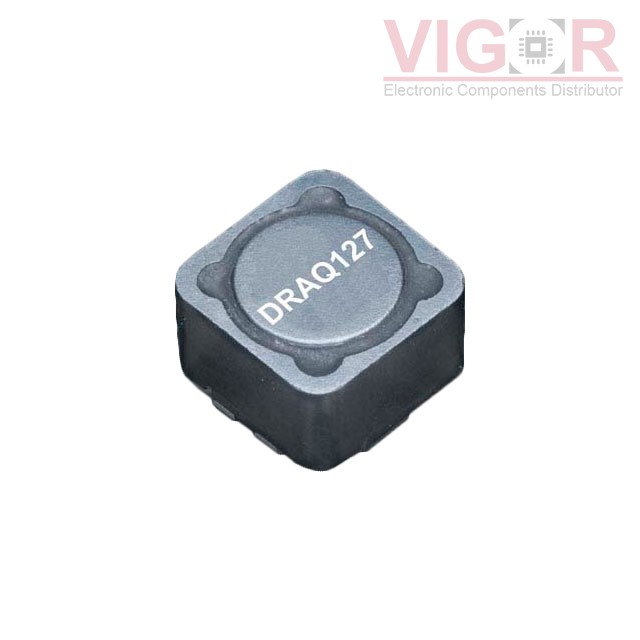

DRAQ127-100-R

Image is for reference,
please contact us to get the real picture

Part No :: DRAQ127-100-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 9.63UH SMD

Catalog: Arrays, Signal Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: DRAQ127-100-R PDF

Availability: 4039 pieces

Unit Price: ~~$1.43000~~

Current price of DRAQ127-100-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DRAQ127-100-R Specifications

Type	Description
Series:	DRAQ127
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	9.63 µH
Inductance - Connected In Series:	38.5 µH
Tolerance:	±25%
Current Rating - Parallel:	6.02 A
Current Rating - Series:	3.01 A
Current Saturation - Parallel:	8.96 A
Current Saturation - Series:	4.48 A
DC Resistance (DCR) - Parallel:	22mOhm Max
DC Resistance (DCR) - Series:	89mOhm Max
Shielding:	Shielded
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 165°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.480" L x 0.480" W (12.20mm x 12.20mm)
Height:	0.315" (8.00mm)

Please confirm the specifications of the products when ordering.
