PF0552.824NL

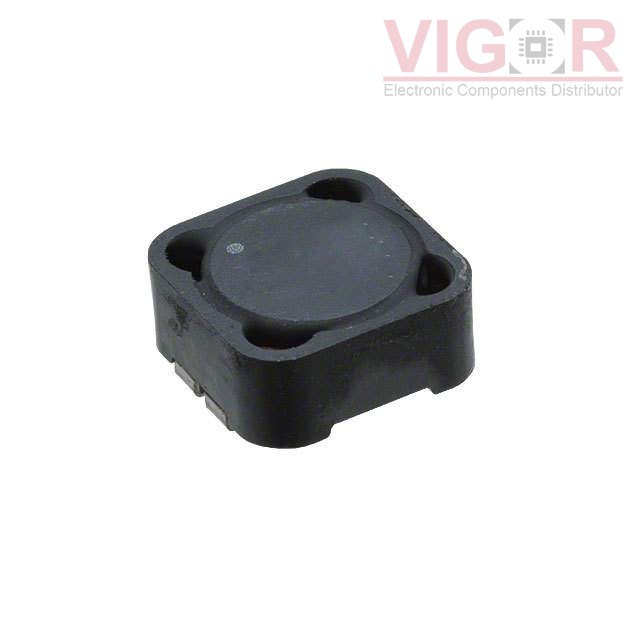

Image is for reference,
please contact us to get the real picture

Part No :: PF0552.824NL

Manufacturer: PulseLarsen Antenna

Description: INDUCT ARRAY 2 COIL 830UH SMD

Catalog: Arrays, Signal Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: PF0552.824NL PDF

Availability: 0 pieces

Unit Price: ~~$1.95000~~

Current price of PF0552.824NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PF0552.824NL Specifications

Type	Description
Series:	PF0552NL
Package:	Tray
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	830 µH
Inductance - Connected In Series:	3.3 mH
Tolerance:	±20%
Current Rating - Parallel:	690 mA
Current Rating - Series:	340 mA
Current Saturation - Parallel:	780 mA
Current Saturation - Series:	390 mA
DC Resistance (DCR) - Parallel:	1.4Ohm Max
DC Resistance (DCR) - Series:	5.5Ohm Max
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.236" (6.00mm)

Please confirm the specifications of the products when ordering.
