PA0766.421NLT

PA0766.421NLT

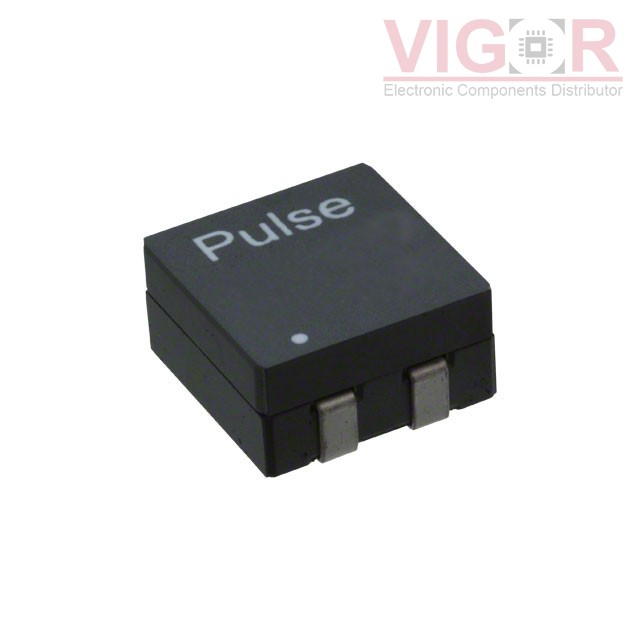

Image is for reference,
please contact us to get the real picture

Part No :

PA0766.421NLT

Manufacturer
PulseLarsen Antenna
Description
INDUCT ARRAY 2 COIL 218NH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
PA0766.421NLT PDF
Availability
0 pieces
Unit Price
$1.34850

Current price of PA0766.421NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0766.421NLT Specifications
Type Description
Series:PA0766NL
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:218 nH
Inductance - Connected In Series:870 nH
Tolerance:±20%
Current Rating - Parallel:50 A
Current Rating - Series:25 A
Current Saturation - Parallel:50 A
Current Saturation - Series:25 A
DC Resistance (DCR) - Parallel:0.38mOhm Max
DC Resistance (DCR) - Series:1.5mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-40°C ~ 130°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.551" L x 0.531" W (14.00mm x 13.50mm)
Height:0.276" (7.00mm)
