SRF1260-2R2Y

SRF1260-2R2Y

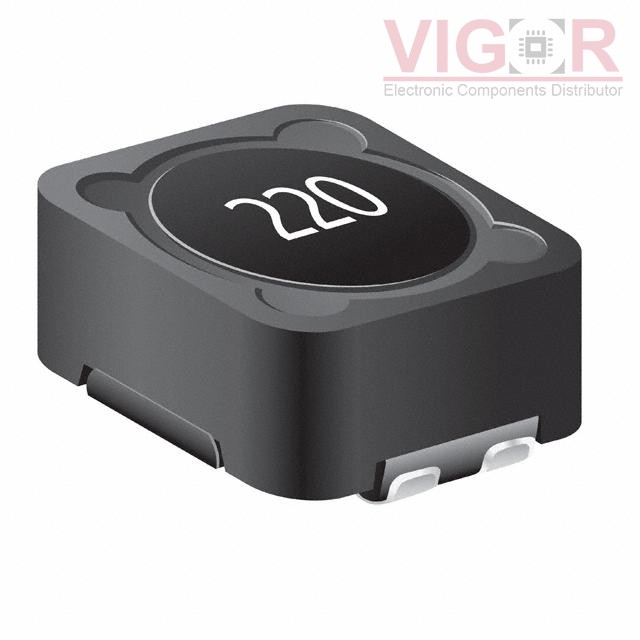

Image is for reference,
please contact us to get the real picture

Part No :

SRF1260-2R2Y

Manufacturer
J.W. Miller / Bourns
Description
INDUCT ARRAY 2 COIL 2.2UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SRF1260-2R2Y PDF
Availability
5 pieces
Unit Price
$1.39000

Current price of SRF1260-2R2Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF1260-2R2Y Specifications
Type Description
Series:SRF1260
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:2.2 µH
Inductance - Connected In Series:8.8 µH
Tolerance:±30%
Current Rating - Parallel:10.9 A
Current Rating - Series:5.46 A
Current Saturation - Parallel:15 A
Current Saturation - Series:7.5 A
DC Resistance (DCR) - Parallel:8.5mOhm Max
DC Resistance (DCR) - Series:33.3mOhm Max
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.244" (6.20mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

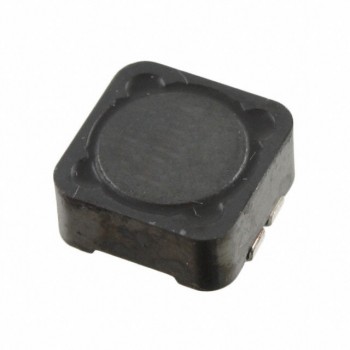

HOT DRQ125-220-R

DRQ125-220-R

INDUCT ARRAY 2 COIL 22.36UH SMD

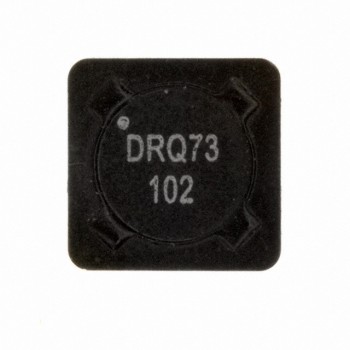

HOT DRQ73-102-R

DRQ73-102-R

INDUCT ARRAY 2 COIL 995UH SMD

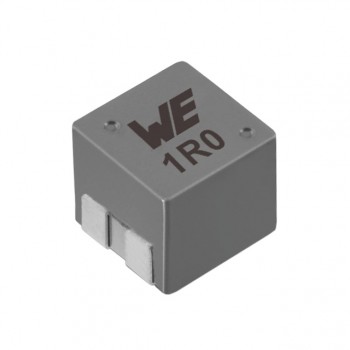

HOT 7448990470
