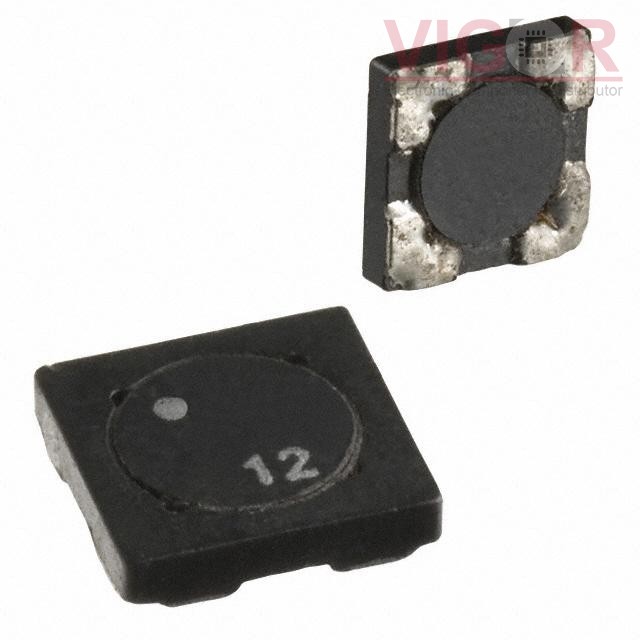

SDQ12-1R0-R

SDQ12-1R0-R

Image is for reference,
please contact us to get the real picture

Part No :

SDQ12-1R0-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 810NH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
SDQ12-1R0-R PDF
Availability
3593 pieces
Unit Price
$1.72000

Current price of SDQ12-1R0-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ12-1R0-R Specifications
Type Description
Series:SDQ
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:810 nH
Inductance - Connected In Series:3.24 µH
Tolerance:±20%
Current Rating - Parallel:2.49 A
Current Rating - Series:1.25 A
Current Saturation - Parallel:3.38 A
Current Saturation - Series:1.69 A
DC Resistance (DCR) - Parallel:40.3mOhm
DC Resistance (DCR) - Series:161.1mOhm
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:0.047" (1.19mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CTX33-3-R

CTX33-3-R

INDUCT ARRAY 2 COIL 32.86UH SMD
HOT PM3602-20-RC

PM3602-20-RC

INDUCT ARRAY 2 COIL 20UH SMD

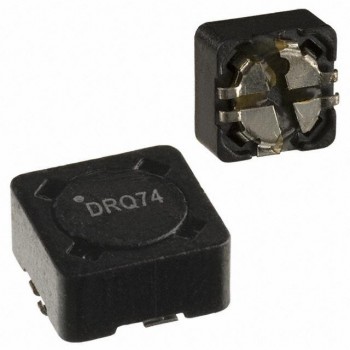

HOT DRQ74-681-R
