SRF0703-8R2M

SRF0703-8R2M

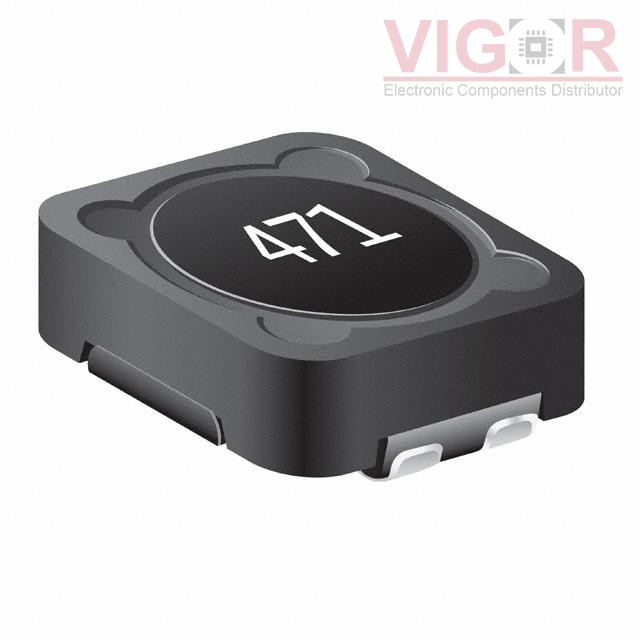

Image is for reference,
please contact us to get the real picture

Part No :

SRF0703-8R2M

Manufacturer
J.W. Miller / Bourns
Description
INDUCT ARRAY 2 COIL 8.2UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
SRF0703-8R2M PDF
Availability
2398 pieces
Unit Price
$0.96000

Current price of SRF0703-8R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF0703-8R2M Specifications
Type Description
Series:SRF0703
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:8.2 µH
Inductance - Connected In Series:32.8 µH
Tolerance:±20%
Current Rating - Parallel:2.19 A
Current Rating - Series:1.1 A
Current Saturation - Parallel:2.66 A
Current Saturation - Series:1.33 A
DC Resistance (DCR) - Parallel:77.2mOhm Max
DC Resistance (DCR) - Series:306mOhm Max
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.299" L x 0.299" W (7.60mm x 7.60mm)
Height:0.142" (3.60mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SRF1260A-3R3Y

SRF1260A-3R3Y

INDUCT ARRAY 2 COIL 3.3UH SMD

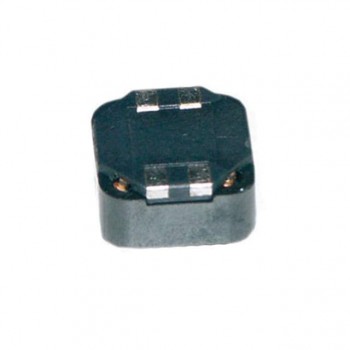

HOT 744877003

744877003

INDUCT ARRAY 2 COIL 3.3UH SMD

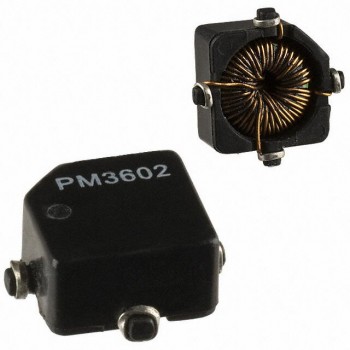

HOT PM3602-300-RC
