CTX20-2A-R

CTX20-2A-R

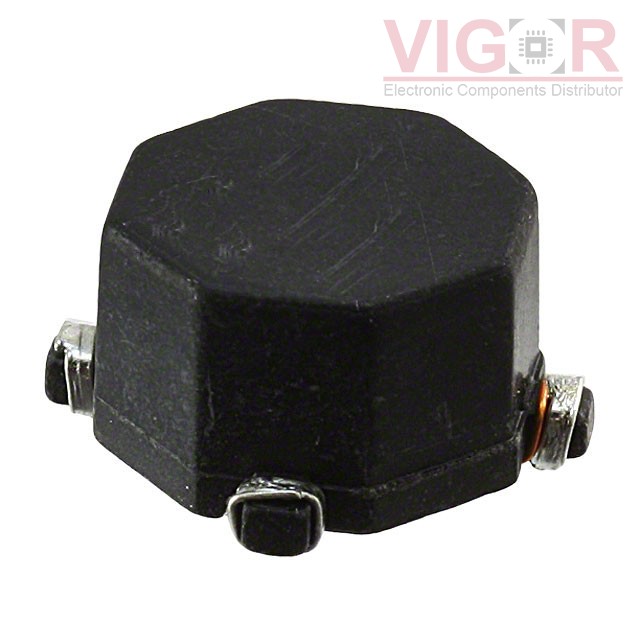

Image is for reference,
please contact us to get the real picture

Part No :

CTX20-2A-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 20.22UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
CTX20-2A-R PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CTX20-2A-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CTX20-2A-R Specifications
Type Description
Series:OCTA-PAC® PLUS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Coils:2
Inductance - Connected In Parallel:20.22 µH
Inductance - Connected In Series:80.9 µH
Tolerance:±25%
Current Rating - Parallel:2.24 A
Current Rating - Series:1.12 A
Current Saturation - Parallel:2.34 A
Current Saturation - Series:1.17 A
DC Resistance (DCR) - Parallel:78mOhm Max
DC Resistance (DCR) - Series:313mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.450" L x 0.450" W (11.43mm x 11.43mm)
Height:0.235" (5.97mm)
