SCX114-2R2

SCX114-2R2

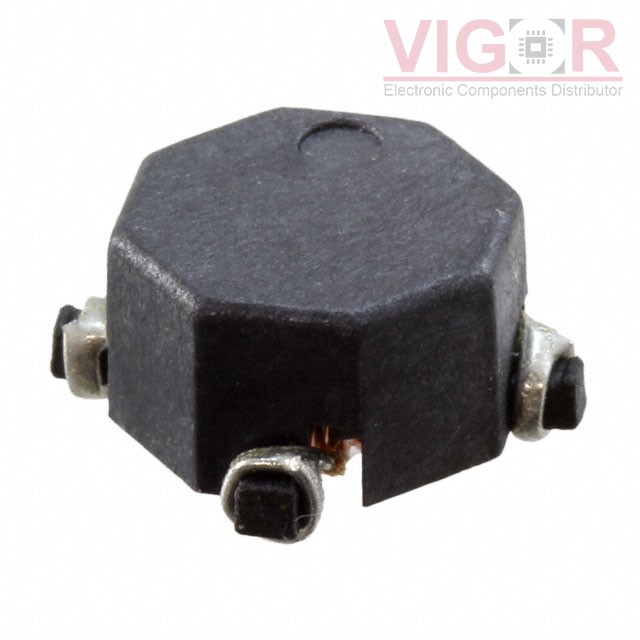

Image is for reference,
please contact us to get the real picture

Part No :

SCX114-2R2

Manufacturer
Signal Transformer
Description
INDUCT ARRAY 2 COIL 2.2UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
SCX114-2R2 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SCX114-2R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SCX114-2R2 Specifications
Type Description
Series:SCX114
Package:Tape & Reel (TR)
Part Status:Obsolete
Number of Coils:2
Inductance - Connected In Parallel:2.2 µH
Inductance - Connected In Series:8.08 µH
Tolerance:±20%
Current Rating - Parallel:3.4 A
Current Rating - Series:1.7 A
Current Saturation - Parallel:-
Current Saturation - Series:-
DC Resistance (DCR) - Parallel:18mOhm Max
DC Resistance (DCR) - Series:70mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.461" L x 0.461" W (11.70mm x 11.70mm)
Height:0.217" (5.50mm)
