PF0553.682NLT

PF0553.682NLT

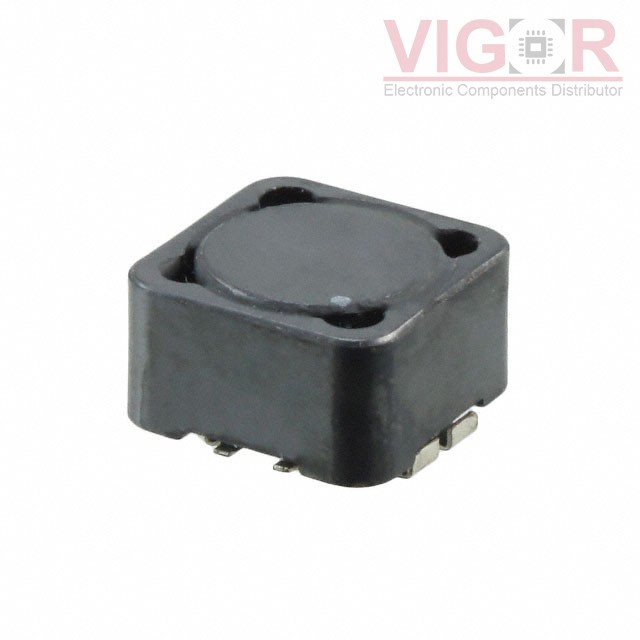

Image is for reference,
please contact us to get the real picture

Part No :

PF0553.682NLT

Manufacturer
PulseLarsen Antenna
Description
INDUCT ARRAY 2 COIL 7.4UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
PF0553.682NLT PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PF0553.682NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PF0553.682NLT Specifications
Type Description
Series:PF0553NL
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:7.4 µH
Inductance - Connected In Series:30 µH
Tolerance:±20%
Current Rating - Parallel:7.2 A
Current Rating - Series:3.6 A
Current Saturation - Parallel:13 A
Current Saturation - Series:6.6 A
DC Resistance (DCR) - Parallel:12mOhm Max
DC Resistance (DCR) - Series:46mOhm Max
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.315" (8.00mm)
