NLV25T-330J-PFD

NLV25T-330J-PFD

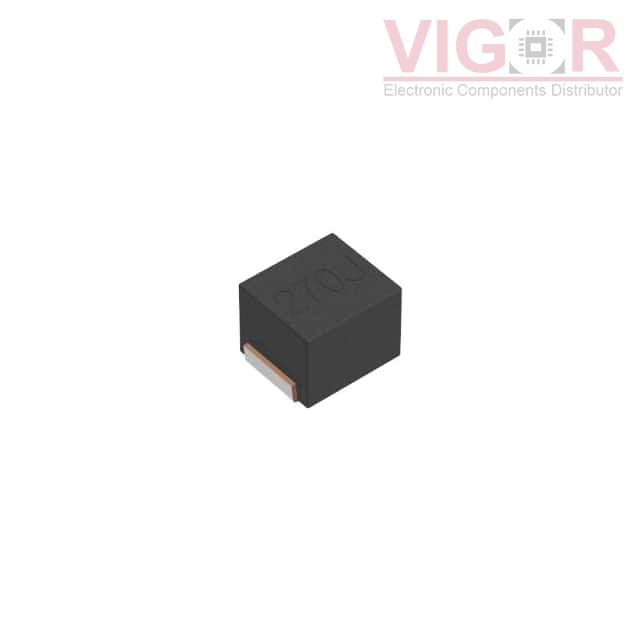

Image is for reference,
please contact us to get the real picture

Part No :

NLV25T-330J-PFD

Manufacturer
TDK Corporation
Description
FIXED IND 33UH 110MA 7.1 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
NLV25T-330J-PFD PDF
Availability
0 pieces
Unit Price
$0.12811

Current price of NLV25T-330J-PFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV25T-330J-PFD Specifications
Type Description
Series:NLV-PFD
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Type:Wirewound
Material - Core:Ferrite
Inductance:33 µH
Tolerance:±5%
Current Rating (Amps):110 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):7.1Ohm Max
Q @ Freq:25 @ 2.52MHz
Frequency - Self Resonant:20MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.075" (1.90mm)
