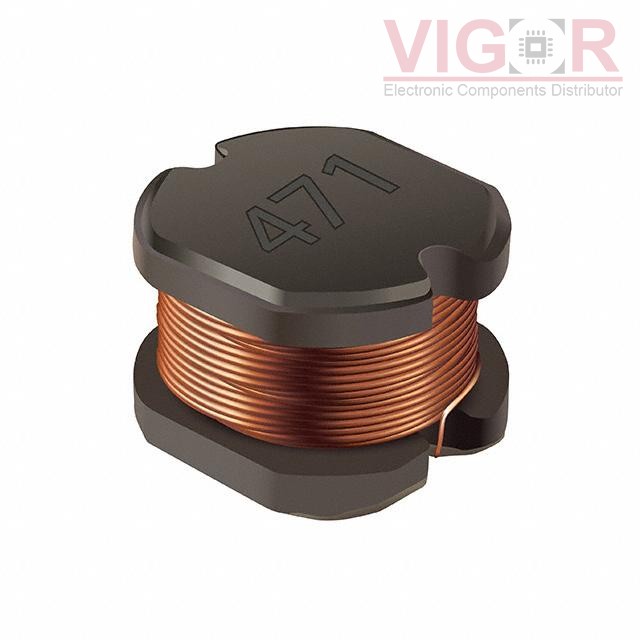

SDE0805A-180M

Image is for reference,
please contact us to get the real picture

Part No :: SDE0805A-180M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 18UH 2.45A 100MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: SDE0805A-180M PDF

Availability: 1384 pieces

Unit Price: ~~$0.77000~~

Current price of SDE0805A-180M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDE0805A-180M Specifications

Type	Description
Series:	SDE0805A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	18 µH
Tolerance:	±20%
Current Rating (Amps):	2.45 A
Current - Saturation (Isat):	2A
Shielding:	Unshielded
DC Resistance (DCR):	100mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	17.6MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):	0.217" (5.50mm)
