L0806B560JSWST

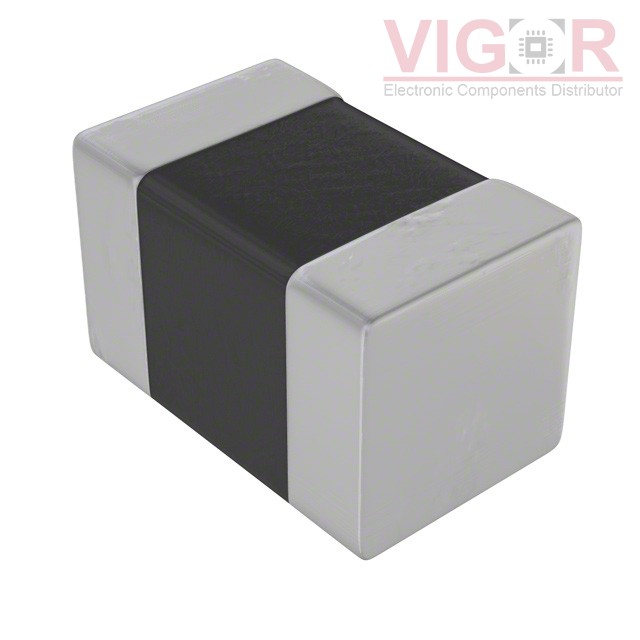

Image is for reference,
please contact us to get the real picture

Part No :: L0806B560JSWST

Manufacturer: KEMET

Description: FIXED IND 56UH 95MA 5.9 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: L0806B560JSWST PDF

Availability: 1904 pieces

Unit Price: ~~$0.29000~~

Current price of L0806B560JSWST is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L0806B560JSWST Specifications

Type	Description
Series:	L-SWS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	56 µH
Tolerance:	±5%
Current Rating (Amps):	95 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	5.9Ohm
Q @ Freq:	-
Frequency - Self Resonant:	12MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0806 (2016 Metric)
Supplier Device Package:	0806 (2016 Metric)
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.071" (1.80mm)
