78FR56K-RC

78FR56K-RC

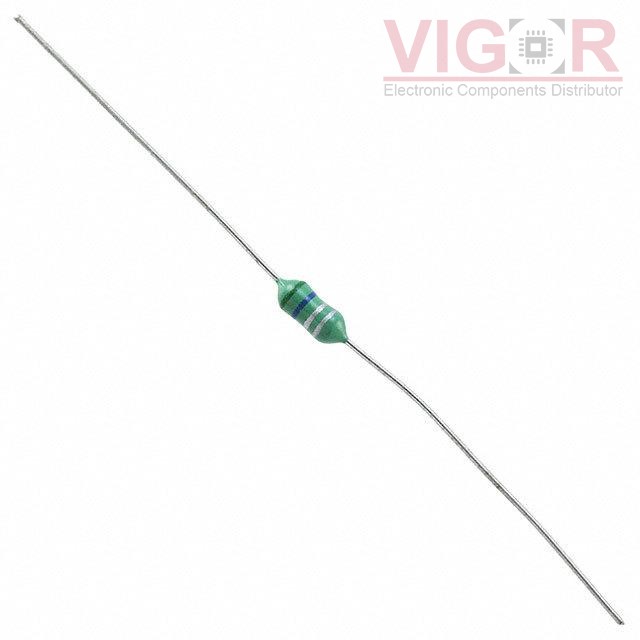

Image is for reference,
please contact us to get the real picture

Part No :

78FR56K-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560NH 950MA 120MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
78FR56K-RC PDF
Availability
5306 pieces
Unit Price
$0.28000

Current price of 78FR56K-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

78FR56K-RC Specifications
Type Description
Series:78F
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):950 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):120mOhm Max
Q @ Freq:40 @ 25MHz
Frequency - Self Resonant:245MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.110" Dia x 0.280" L (2.79mm x 7.11mm)
Height - Seated (Max):-
