LQW15AN2N7G80D

Image is for reference,
please contact us to get the real picture

Part No :: LQW15AN2N7G80D

Manufacturer: TOKO / Murata

Description: FIXED IND 2.7NH 1.5A 47MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: LQW15AN2N7G80D PDF

Availability: 0 pieces

Unit Price: ~~$0.07680~~

Current price of LQW15AN2N7G80D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW15AN2N7G80D Specifications

Type	Description
Series:	LQW15
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	2.7 nH
Tolerance:	±2%
Current Rating (Amps):	1.5 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	47mOhm Max
Q @ Freq:	28 @ 250MHz
Frequency - Self Resonant:	14GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402
Size / Dimension:	0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

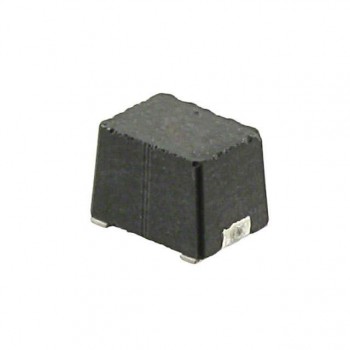

ISC1812RVR15M
